MTX50 Vintage Microphone
A tribute to the M50
The MTX50 is Fortin's recreation of the legendary M50 — a pure omnidirectional microphone built around a hand-made D9 capsule on a polished acrylic sphere, paired with our AC701E solid-state emulator. Handcrafted in Canada.
The Capsule

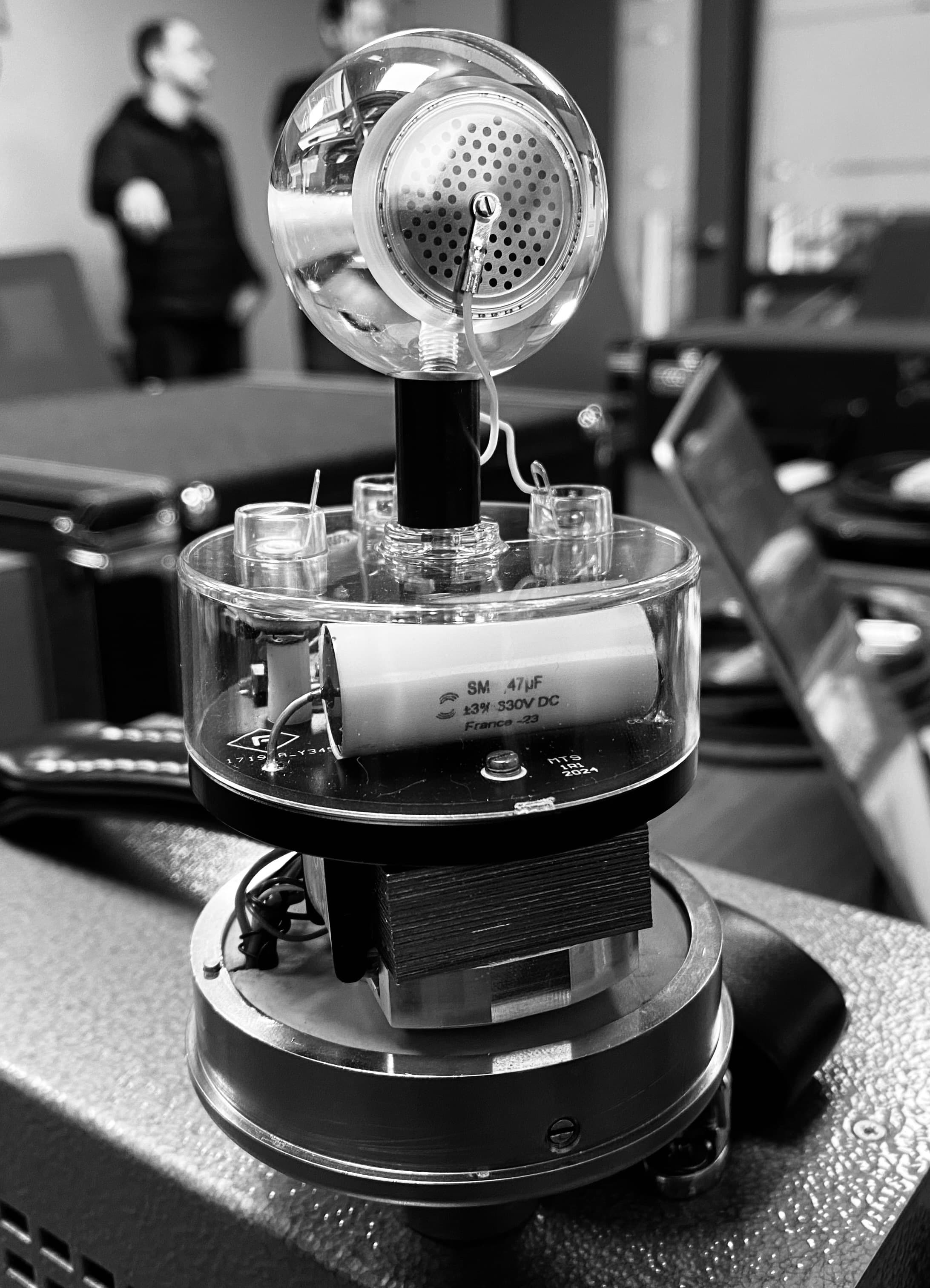

The D9 capsule, visible through the grille
The MTX50 carries the D9 capsule — Fortin’s recreation of the spherical capsule that gave the original M50 its voice. Like our D7, every D9 is hand-built in our Quebec workshop. It sits at the apex of an acrylic sphere, turned and polished locally; you can see the sphere glowing through the grille — the same visual signature as the M50.
The geometry — capsule mounted on a diffusing sphere — produces a natural high-frequency lift that depends on the angle of incidence. That’s what gives the MTX50 the open, airy character engineers reach for on wide stereo and orchestral captures.
- Hand-built D9 capsule, made in Quebec
- Locally turned and polished acrylic sphere
- Pure omnidirectional pattern — no compromises

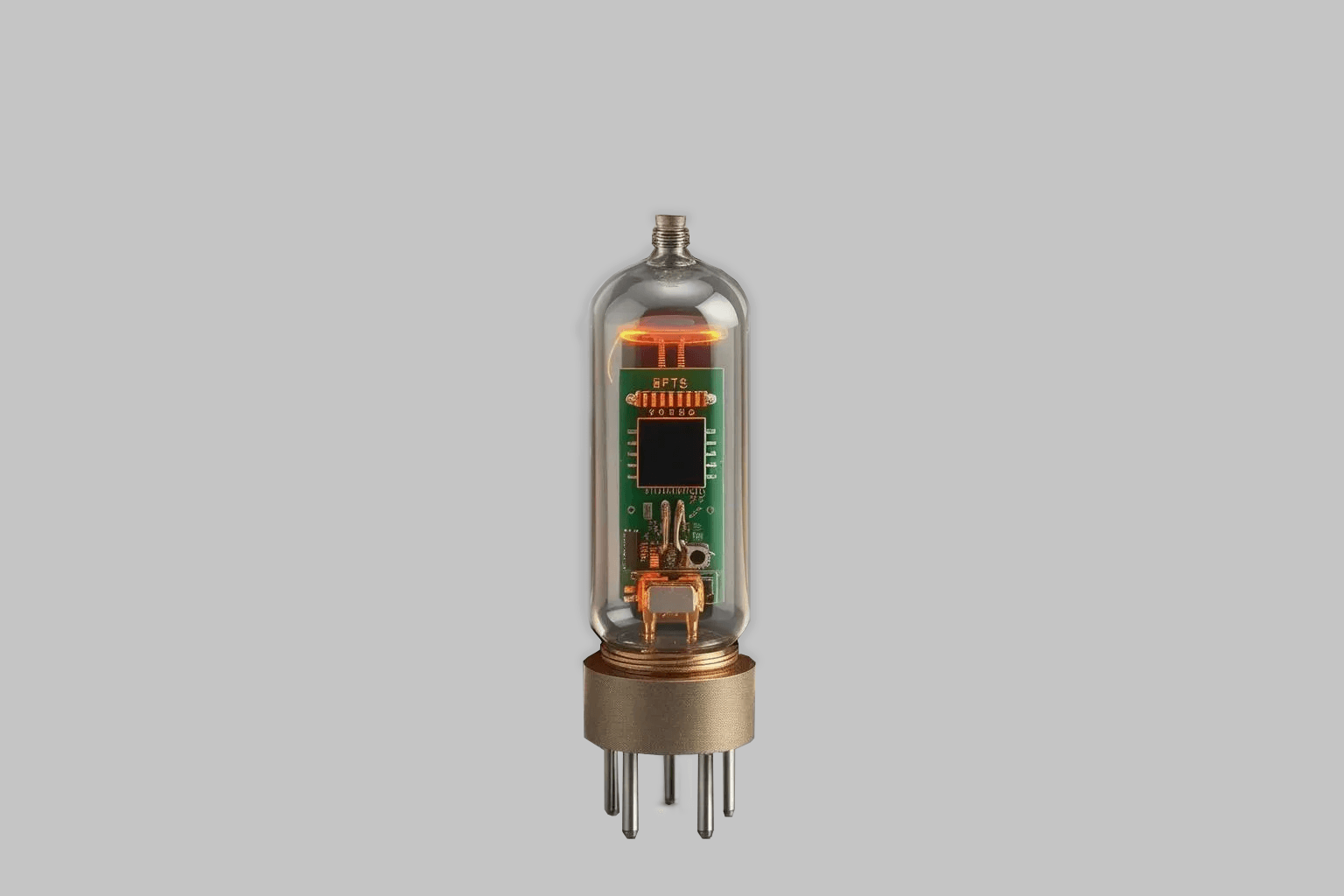

The Emulator
AC701E — classic tube character, modern reliability
The original M50’s voice came from the AC701K, a vintage tube as rare today as the VF14 in the U47. Our AC701E solid-state emulator reproduces its tonal behavior using the same engineering principles as the VF14E in the DB7 and DB8 — the authentic sound, without the cost, the aging, or the hunt for NOS stock.
- Faithful reproduction of the AC701K tonal character
- No tubes to source, no maintenance
- Consistent performance, session after session
The Chassis
A shared chassis, a different voice
The MTX50 uses the same chassis as the MT9: aerospace-grade aluminum, hand-brazed brass, nickel-plated locally in Canada. It’s a deliberate continuity, not a compromise — the chassis is engineered for acoustic neutrality and long-term durability. What sets the MTX50 apart is what’s inside: the D9 capsule and the AC701E emulator.
Applications
Where the MTX50 belongs
- Decca Tree (classic orchestral 3-mic configuration)
- Drum overheads, room and ambient capture
- Violin, strings, and acoustic ensembles
- Piano ambience
- Room mics for choirs, churches, and concert halls
- Any situation where the air of the room matters
Matched Pair
Calibrated for true stereo imaging
Like the MT9, the MTX50 is available as a factory-matched pair — each unit hand-tested and calibrated for identical frequency response and sensitivity. Essential for true Decca Tree configurations and any spaced stereo setup where image accuracy matters.
Specifications
MTX50 — Technical Specifications
Capsule
- Type
- M9
- Acoustic Principle
- Pressure Gradient
- Polar Patterns
- Omni
Electrical
- Frequency Response
- 30 Hz – 18 kHz
- Sensitivity
- 14 mV/Pa
- Max SPL
- 125 dB
- Nominal Impedance
- 200 Ω
- Recommended Load Impedance
- 1000 Ω
- Audio Transformer
- BV11 (custom)
- Preamplifier
- AC701E Solid State Emulator
- Plate Voltage
- 120 V
- Plate Current
- ≤ 1 mA
- Heater Voltage
- 6.2 V
- Heater Current
- ≤ 200 mA
- Tube Warm-up Time
- 0 minutes
Physical
- Weight
- 790 g
- Diameter
- 80 mm
- Length
- 163 mm
- Cable
- 8 m Sommer cable
- Connectors
- Binder M25 7-pin / XLR 3F
Chassis
- Body
- Aerospace-grade aluminum and brass
- Finish
- Nickel-plated, hand-brazed in Canada
- Yoke Mount
- 100% brazed brass, nickel-plated
Power
- Power Supply
- AC 120 V
Operating Conditions
- Operating Temperature
- 0 °C to +50 °C
- Operating Humidity
- 0% to 70% RH
- Storage Temperature
- –20 °C to +75 °C
- Storage Humidity
- 0% to 90% RH
Kit Contents
MTX50 microphone, audio cable, analog power supply, 120V power cord, yoke mount, protective case, vintage carrying case.
